LED 元器件

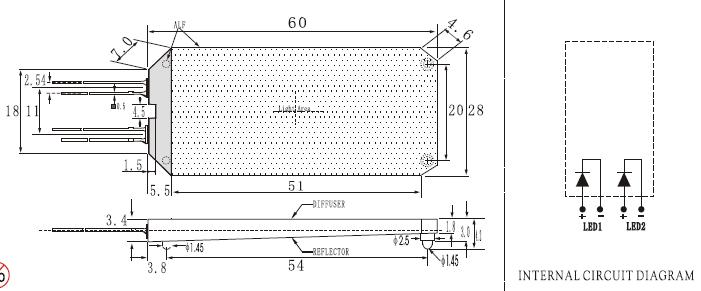

CLB - 6028

產品特性：

產品介紹

Part Number	Emitting Material	Wave Length 入D(nm)	Emitting Color	(If=20mA)
				VF(V)		IV(mcd)
				Typ.	Max.	Typ.
CLB-6028-△R	GaAIAs	690	Red	2.3	2.5	80
CLB-6028-△O	GaAsP/GaP	610	Orange	2.3	2.5	100
CLB-6028-△G	AlGaInP	520	Green	3.2	3.8	150
CLB-6028-△Y	GaAsP/GaP	585	Yellow	2.3	2.5	120
CLB-6028-△B	GaN	465	Blue	3.0	3.8	125
CLB-6028-△W	GalnN	------	White	3.5	4.0	250

ABSOLUTE MAXIMUM RATINGS (Ta=+25℃)

PARAMETER SYMBOL RATING UNIT

Forward Current IF 20 mA

Forward Pules Current IF(Peak) 100 mA

Reveres Voltage VR 5 V

Operationg Temperation TOpr -20～+85 ℃

Storage Temperation TStg -40～+85 ℃

Soldering Hear(5s) TSol 260 ℃

Power Dissipation Pd 80*2 mW

產品詳細規格書

1112/201112295035.pdf
